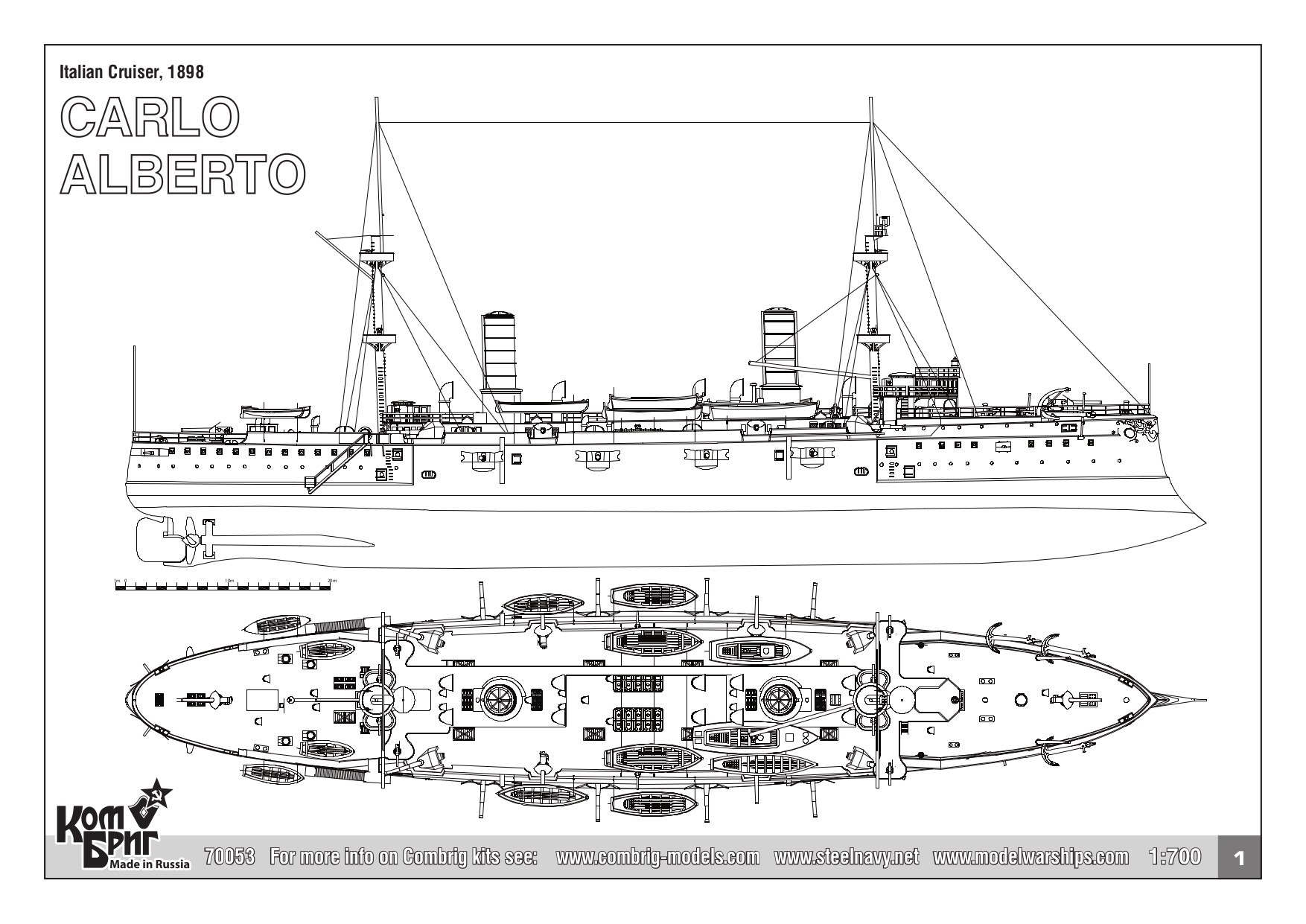

70053 Italian Armored Cruiser Carlo Alberto, 1898, 1/700


The Italian cruiser Carlo Alberto was the second of two Vettor Pisani-class armored cruisers built for the Royal Italian Navy (Regia Marina) in the 1890s. She was deployed overseas several times during her career, notably to the Far East and South America. The ship was used as a royal yacht by King Victor Emmanuel III of Italy in 1902, during which time she was used for radio experiments by Guglielmo Marconi. Carlo Alberto served as a training ship before the start of the Italo-Turkish War of 1911–12. During the war she supported Italian operations in Libya. The ship was virtually inactive during World War I and was converted into a troop transport in 1917–18. Carlo Alberto was stricken from the Navy List in 1920 and subsequently broken up for scrap.

Carlo Alberto had a length between perpendiculars of 99 meters (324 ft 10 in) and an overall length of 105.7 meters (346 ft 9 in). She had a beam of 18.04 meters (59 ft 2 in) and a draft of 7.2 meters (23 ft 7 in). The ship displaced 6,397 metric tons (6,296 long tons) at normal load, and 7,057 metric tons (6,946 long tons) at deep load.[1] The Vettor Pisani-class ships had a complement of 28 officers and 472 to 476 enlisted men. The ship was powered by two vertical triple-expansion steam engines, each driving one propeller shaft. Steam for the engines was supplied by eight Scotch marine boilers. Designed for a maximum output of 13,000 indicated horsepower (9,700 kW) and a speed of 19 knots (35 km/h; 22 mph),[3] Carlo Alberto barely exceeded her designed speed when she reached 19.1 knots (35.4 km/h; 22.0 mph) during her sea trials from 13,219 ihp (9,857 kW). She had a cruising radius of about 5,400 nautical miles (10,000 km; 6,200 mi) at a speed of 10 knots (19 km/h; 12 mph)

From Wikipedia


Photos of the kit parts soon to come



Download as PDF


Coming soon

Reviews and Build Articles

Coming soon
